ebisutm s-series eva is a new generation of encapsulating film from first. with the function of low acetic acid, it is a high-end product suitable for harsh humid and hot environment, and high-standard residential application. with kyocera’s patent technology, it can provide a fantastic long-term protection for crystalline silicon cells, and help pv modules to achieve long-term high reliability in hygrothermal environment. besides, s-series eva also has excellent pid resistance, high adhesion and anti-discoloration properties.

the main characteristics of ebisutm s-series eva film are as follows：

1) excellent cell protection ability to achieve long-term reliable work of pv modules;

2) better pid resistance for bifacial pv modules;

3) excellent adhesion to glass, metal and polymer backsheet, maintaining long term adhesion;

4) excellent durability, such as weather resistance, high-temperature and high-humidity resistance, uv light resistance;

5)  fast cure performance in favour of shortening lamination time

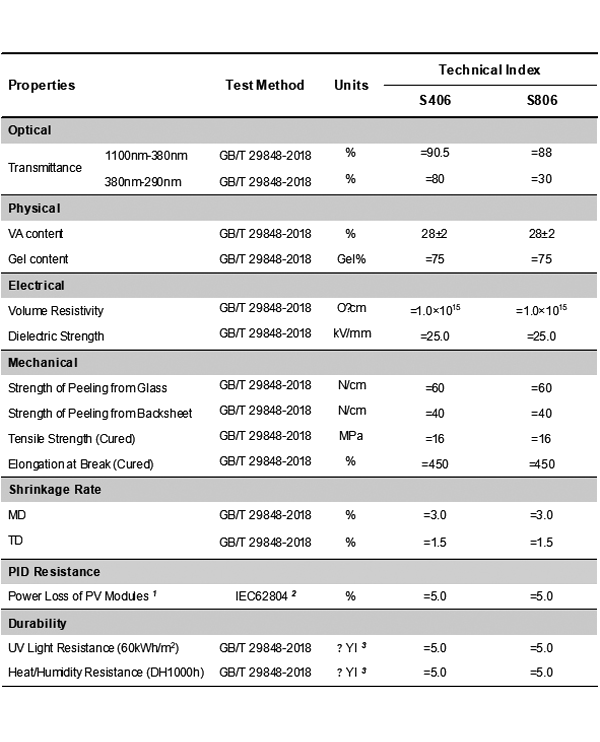

2、技术规范

notes:
1: the pv modules are crystalline silicon and encapsulated by f•rst ebisutm s-series eva.
2: test condition: 85oc, 85%rh, -1500v, 192h
3: glass / eva/ eva/ backsheet laminate’s △yi will be different due to the backsheet aging resistance.
